NEWFOUNDLAND F32
4/5 cabin versions
Fiberglass construction with continuous longitudinal structure. • Hull color and white superstructure • Painted black waterline strip • Painted black glazing finishing • Painted Black details • Rina classification for yacht private use pleasure ships

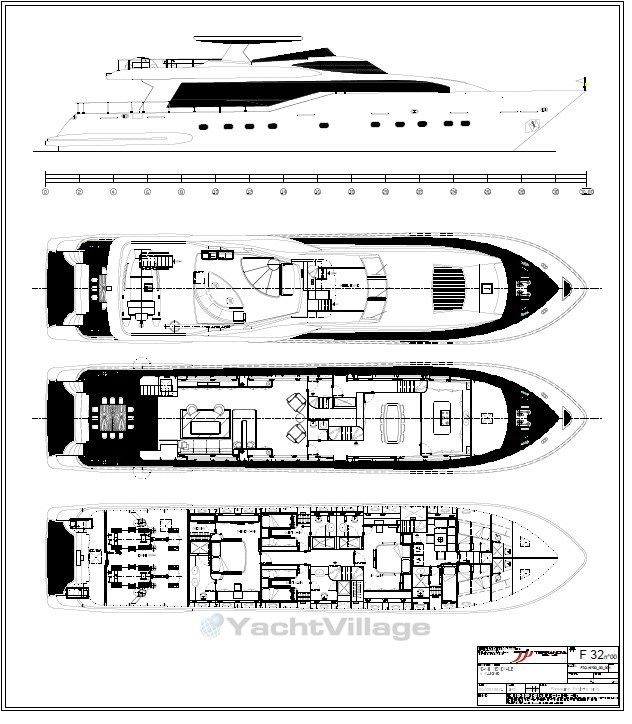

Compartmentalization: • main deck: kitchen and steering room lounge. • lower deck: owner's cabin with bathroom, two side guest cabins with two bathrooms, V.I.P. cabin with bathroom, crew room with two cabins and two bathrooms.
Main technical data : • Length ft 31.70 metres • Width 6.60 metres
• Propulsion engines No. 2 caterpillar C32 acert 1,925 hp
• Generator sets N° 2 Khoeler 33 KW
• Speed max 25 knots • Cruising speed 22 knots
• Fuel capacity 10,500 lt • Fresh water capacity 1,600 lt • Black water capacity 600 lt • Grige water capacity 600 lt
Navigation tools : • Electronic motor controls (accelerators and inverters) • Start/stop motor control panels • Chart-plotter Gps display Raymarine series eS127 • Radar display Raymarine series eS127 (HD antenna OA 4kW) • Raymarine Autopilot series p70R • Raymarine bar angle series p70RS • Tridata with speed, depth, temp., sensors Raymarine i70s series • Airmar 220WX Weather Station Nmea2000 • AIS650 and AIS100 Raymarine • Vhf Raymarine 260 Series • Compass Ritchie SS5000 • Jabsco orientation beacon control • Kahlengberg trumpet control • Joystick elicha directional bow, • instrumentation on government/navigation fly bridge decreased with repetitions and engagement grip. • Glomex Saturn 4 V9104s2 Satellite TV Antenna
Entertainment system: • lounge No. 1 smart tv 40 inches + bluetouth speaker • 32-inch smart TV owner's room • 28-inch smart TV side guest rooms • 28-inch V.I.P smart TV room • bluetouth speakers rear cockpit • flying bridge speakers bluetouth • bluetouth speaker bow sundeck • Android and IOS compatible system
Electrical system : • the on-board electrical system will be built in accordance with private yacht regulations •
Operating voltages : o 380V 50Hz three-phase ground outlet 63A with 400V/230V 40KVA or 400V/230V insulation transformer 50Hz three-phase 2-generator for AC or 24Vcc current lines from batteries for DC and motor start-up circuits or 24Vcc from emergency batteries for emergency circuits • 12Vcc for starting generator sets
Main accessories : • Nr 02 Galvanized Posidonia anchors of 145Kg, • Nr 02 galvanized chains Posidonia 16mm (100 m each), • Nr 02 winches salpancora 5000W 380V, • Nr 02 winches tonneggi 3000W 380V, • Nr 01 electric prora maneuver propeller 25Hp, • Dehaler 160 lth, • Hydraulic walkway or transformer poppiero tbd. • Crane for todder the tender up to 600 kg.
Air conditioning system : • Air conditioning system • Central air conditioning system 144,000 BTU with hot/cold reversible cycle for Mediterranean climate
Safety equipment : • Nr 02 Life rafts • Nr 10 Polyform F6 fenders with paraboard cover Nr 02 Polyform A3 fenders with 100m boarding boarding top nylon d.30mm • 100mt nylon mooring top d.20mm 50mt mooring top d. 20mm • Nr 02 vehicles sailors • Safety equipment kit, navigation within 50mn, as by Italian flag regulation.
Interior standards (general lines): • white lacqueck walls and risers, lorica or nappa air ceilings in neutral colors, moquettes floors with under carpeting, parquet kitchen floor, parquet bathroom floors, Corian shower cabins, kitchen tops and corian bathrooms.
• Foresti Soardi LED light points • Olivari internal door handles • Colombo bathroom accessories • toilet and tecma bidet • Construction site sample fabrics.
Exteriors : • table in the cockpit of the main deck with 8 seats (chairs)or furniture in vtr, • table and sundeck on the fly deck with vtr furniture, • fly dashboard in vtr, • the fly deck is covered by a partial central hardtop. • Main deck and teak bath beach.
